Many people have been looking for a real answer to active cooling and regulation for their Meade DSI line of imagers. You have found the right place. The images below show the design and layout that has gone into the production of the only professional upgrade to add active and regulated cooling to the Meade DSI images! All parts are machined on a Haas CNC Milling Machine from high grade billet aluminum!! For Questions or other information or to pre-order your own cooler, please visit Camera Bug LTD, at: www.camerabug.com.

Wire frame of the new active regulated cooling upgrade for all Meade DSI & DSI II Imagers.

Rendered Images of the new active regulated cooling upgrade for all Meade DSI & DSI II Imagers.

Completed Images of Actual Models

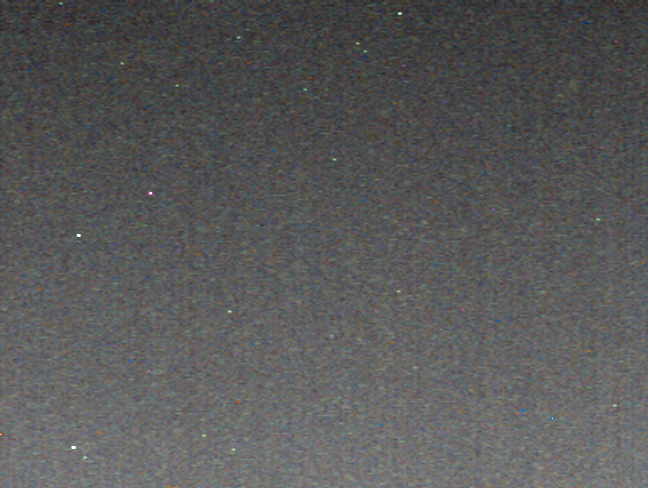

NO COOLING: The image above was in an air-conditioned house at 70 degrees. It is a 4 minute image with the camera opening covered. The camera was on for 10 minutes taken 1 second previews before fresh dark frames were taken. This helps confirm the camera had stabilized. Please note the vertical banding chroma-noise, brighter at the bottom as well as many hot pixels, even after fresh dark frames. The histogram was set the same for the other images below.	NO Cooling, 80mm AT Refractor 25 x 10 second expose with calibrated Dark Frame, it shows Low contrast and very High chroma noise.

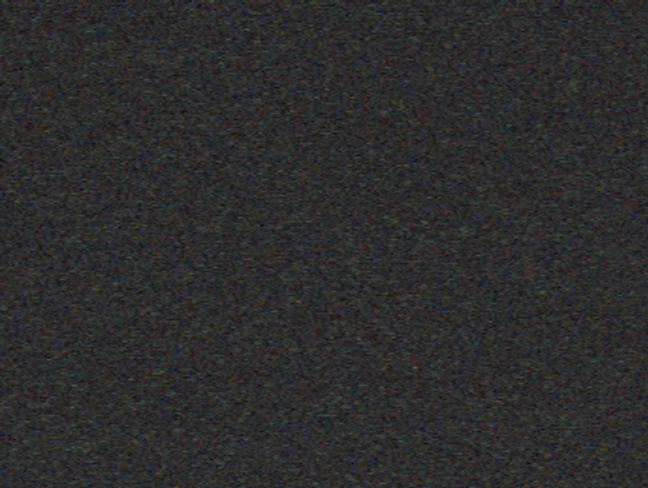

NORMAL COOLING: The image above was in the same locations and condition as above. It is a 4 minute image with the camera opening covered. The camera was set to normal active cooling before fresh dark frames were taken. The cooling is regulated! Please note the vertical banding is gone! chroma-noise is greatly reduced, the bottom and top are now the same brightness, all hot pixels are gone!!. What an improvement. The histogram was set the same as above	Normal Cooling, 80mm AT Refractor 25 x 10 second expose with calibrated Dark Frame, Much higher contrast and very low chroma noise.

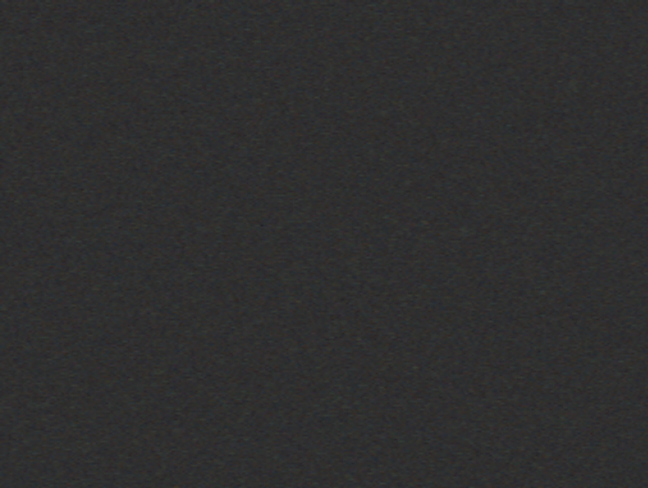

HIGH COOLING: The image above was in the same location and conditions as above. It is a 4 minute image with the camera opening covered. The camera was set to high active cooling before fresh dark frames were taken. The cooling is regulated! Please note the vertical banding is gone! chroma-noise is now gone, the bottom and top are not only the same but the smoothness is many fold better. One more click on the histogram the image is total black. This is the way to use the DSI !!!	Max Cooling, 80mm AT Refractor only 10 x 10 second expose with calibrated Dark Frame, Very good contrast, chroma noise is non detected and colors more accurate. This image was shot in less than half the time of the Non-Cooled and the Normal cooling range!!!
